# Resistência de plantas daninhas
### Anunciato, V.M.
### 2020/10/14 (updated: 2020-10-22)

---

# Vitor Muller Anunciato

🎓 Doutorando pela [FCA/UNESP](https://www.fca.unesp.br/) - Botucatu, BR.
  + (Sanduiche [University of Nebraska Lincoln](https://pat.unl.edu/), EUA).

🎓 Mestrado pela [FCA/UNESP](https://www.fca.unesp.br/) - Botucatu, BR.

🎓 Graduacao pela [UEL](http://portal.uel.br/home/) - Londrina, BR.
  + (Sanduiche [ENGEES](https://engees.unistra.fr/), Strasbourg, FR).

🔪 [Serial Weed Killer](https://serialweedkiller.netlify.app/)
  + (site de divulgacao agro-cientifica)

🎧 [PapoAgro podcast](https://www.papoagro.com.br/) (@papoagropodcast)
---
class: inverse, middle

# O que é resistência de plantas a herbicidas?

---
class: middle

# Plantas daninhas resistentes
A resistência a herbicidas é a capacidade de uma planta para **sobreviver** e se **reproduzir** após a exposição a uma **dose anteriormente letal** de um herbicida.

Yuan et al, 2007.
<center>
![](https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/tumblr_nbpotrjgO11qi4ibzo1_500.gif?raw=true)

---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/doseresponse.png?raw=true" width=800 height=600>
</div>

Anunciato, 2017.

---
class: inverse, middle

# Mecanismos comuns de resistência das plantas daninhas a herbicidas

---

**Translocação diferencial** os biótipos **resistentes** apresentam lenta translocação do(s) herbicida(s) aplicados, não sendo raro os casos onde o herbicida fica **"confinado" ao local de contato**, não se redistribuindo na planta e **não atingindo tecidos de interesse para o controle da planta**.

Feng et al, 2004.

---

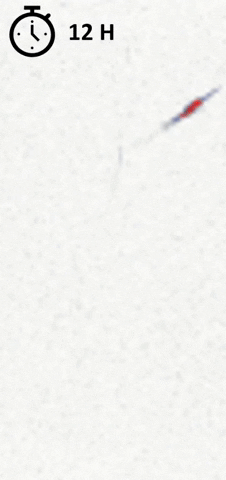

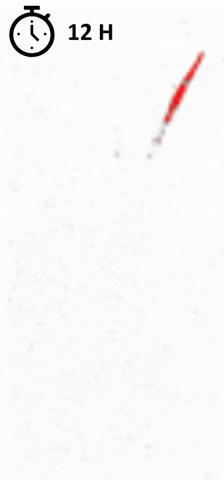

## Translocação diferencial

.pull-left[![](https://media.giphy.com/media/WJfXll2zKkK08AsLNH/giphy.gif)]
.pull-rigth[![](https://media.giphy.com/media/LpeYGQ9Cj0jjra3wTi/giphy.gif)]
.pull-left[**Susceptível**]
.pull-left[**Resistente**]

Adaptado de De Carvalho et al, 2012.

---
class: middle

# Rápida necrose

É um tipo de resistência onde a planta **"sacrifica"** os tecidos **atingidos** pelo herbicida, evitando que o mesmo **translouque** para o resto da planta, principalmente os meristemas.

<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/rpnb.png?raw=true" width=700 height=400>
</div>
Albrech, 2020.

---
class: middle

# Rápida necrose
<center>
![](https://media.giphy.com/media/jKxbaLhu9SAU9z6lyP/giphy.gif)

---
# Desintoxicação ou metabolização

Capacidade que as plantas resistentes possuem de **inativar ou transformar** o herbicida em uma forma **menos tóxica** a planta.

<center>
![](https://media.giphy.com/media/X7hOV8HGBtx64mdcR6/giphy.gif)
---
## Desintoxicação ou metabolização
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/detx.jpeg?raw=true" width=700 height=400>
</div>

De Carvalho et al, 2012.
---
class: inverse, middle
# Como a surge a resistência?

---
## Pressão de seleção
É qualquer conjunto de fatores (ex: aplicacao de um determiando herbicida) que origina o favorecimento de determinados **genes** em relação a outros em determinada **população**.

---
class: midle
# Aonde erramos?
Se você só conhece o martelo todo problema é um prego.

<center>
![hammer](https://media.giphy.com/media/3mJEekHXkjSCnWGTym/giphy.gif)

---
class: middle

---
class: middle

## Sequestro no vacúolo

A planta **transporta** e **apreende o herbicida no vacúolo**, no vacúolo o herbicida é degradado e o herbicida é inativado e não ocorre o **controle da planta daninha não ocorre**.

.pull-left[![](https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/sequestro.png?raw=true)]

.pull-rigth[![](https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/vacuolo.png?raw=true)]

GE et al, 2012.
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/rapidvacuole.png?raw=true" width=600 height=600>
</div>

d'Avignon, D. André, and Xia Ge, 2018.

---
## Amplificação gênica

É a **expansão no número de cópias** de um gene em um genoma celular. Ocorre por erro na replicação do DNA genômico, resulta da **replicação redundante** de uma mesma sequência de DNA.
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/dna.gif?raw=true" width=450 height=450>
</div>

---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/genecopies.png?raw=true" width=700 height=600>
</div>

Gaines et al, 2010.
---

## Modificação no sitio de ação

Consiste na **alteração do sitio de ação**, normalmente essa alteração ocorre pela troca de um aminoácido componente da enzima, isso faz com que o **herbicida não consiga mais se ligar a enzima alvo e impedir a ação da mesma**.

<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/lockkey.gif?raw=true" width=450 height=450>
</div>
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/genemutate.jpg?raw=true" width=800 height=500>
</div>
Yu, Qin, et al. 2015.
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/genemutate2.jpg?raw=true" width=800 height=500>
</div>
Yu, Qin, et al. 2015.
---
class: inverse, middle

# Manejo de plantas resistentes

---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/herbicidelist.png?raw=true" width=1000 height=600>
</div>
---
#### Regra de ouro: "Não perca o ponto de controle"
<div id="htmlwidget-a7218c88bdd01b0599ce" style="width:792px;height:576px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-a7218c88bdd01b0599ce">{"x":{"visdat":{"469c22bc4d06":["function () ","plotlyVisDat"]},"cur_data":"469c22bc4d06","attrs":{"469c22bc4d06":{"x":[100,96,63,22,100,94,81,38,100,91,70,32],"y":["2 leaves","> 5 leaves","> 10 leaves","reprodutive","2 leaves","> 5 leaves","> 10 leaves","reprodutive","2 leaves","> 5 leaves","> 10 leaves","reprodutive"],"text":["Comercial dose of ACCase","Comercial dose of ACCase","Comercial dose of ACCase","Comercial dose of ACCase","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS"],"color":["E.indica","E.indica","E.indica","E.indica","A. hybridus","A. hybridus","A. hybridus","A. hybridus","E. heterophylla","E. heterophylla","E. heterophylla","E. heterophylla"],"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"bar"}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"title":"Control of weed based in stage of spray","xaxis":{"domain":[0,1],"automargin":true,"title":"Control (%)"},"yaxis":{"domain":[0,1],"automargin":true,"title":"Stage","type":"category","categoryorder":"array","categoryarray":["2 leaves","> 5 leaves","> 10 leaves","reprodutive"]},"hovermode":"closest","showlegend":true},"source":"A","config":{"showSendToCloud":false},"data":[{"x":[100,94,81,38],"y":["2 leaves","> 5 leaves","> 10 leaves","reprodutive"],"text":["Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS"],"type":"bar","orientation":"h","name":"A. hybridus","marker":{"color":"rgba(102,194,165,1)","line":{"color":"rgba(102,194,165,1)"}},"textfont":{"color":"rgba(102,194,165,1)"},"error_y":{"color":"rgba(102,194,165,1)"},"error_x":{"color":"rgba(102,194,165,1)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[100,91,70,32],"y":["2 leaves","> 5 leaves","> 10 leaves","reprodutive"],"text":["Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS","Comercial dose of ALS"],"type":"bar","orientation":"h","name":"E. heterophylla","marker":{"color":"rgba(252,141,98,1)","line":{"color":"rgba(252,141,98,1)"}},"textfont":{"color":"rgba(252,141,98,1)"},"error_y":{"color":"rgba(252,141,98,1)"},"error_x":{"color":"rgba(252,141,98,1)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[100,96,63,22],"y":["2 leaves","> 5 leaves","> 10 leaves","reprodutive"],"text":["Comercial dose of ACCase","Comercial dose of ACCase","Comercial dose of ACCase","Comercial dose of ACCase"],"type":"bar","orientation":"h","name":"E.indica","marker":{"color":"rgba(141,160,203,1)","line":{"color":"rgba(141,160,203,1)"}},"textfont":{"color":"rgba(141,160,203,1)"},"error_y":{"color":"rgba(141,160,203,1)"},"error_x":{"color":"rgba(141,160,203,1)"},"xaxis":"x","yaxis":"y","frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---
## 2 folhas

---
### >5 folhas
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/ahybridus5.jpg?raw=true" width=800 height=500>
</div>
---
### >10 folhas
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/ahybridus10.jpg?raw=true" width=800 height=500>
</div>

---
### planta adulta
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/amaranthusresult.jpeg?raw=true" width=800 height=500>
</div>

---
# Perdeu o timing de aplicação?
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/shit.gif?raw=true" width=500 height=500>
</div>
---

<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/buva_altura1.png?raw=true" width=800 height= 550>
</div>
Blainski et al, 2009.
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/buva_altura2.png?raw=true" width=800 height= 550>
</div>
Blainski et al, 2009.
---
class: inverse, middle

# Manejo outonal

---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/manejo_outonal1.png?raw=true" width=800 height= 550>

Antonio M.O. Neto, 2011.
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/manejo_outonal2.png?raw=true" width=800 height= 550>

[ADAMA](https://www.adama.com/brasil/pt/espaco-do-agricultor/pre-emergentes-em-soja)
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/pre2.png?raw=true" width=800 height= 550>

[ADAMA](https://www.adama.com/brasil/pt/espaco-do-agricultor/pre-emergentes-em-soja)
---
### Manejo em pos
<div align="center">
<img src="https://lh3.googleusercontent.com/9feGzWsexd1OE3Ukv2TystQGsvG61nrqzF0vQQTfDgkUKp0SXOa1xLx7lK676AIegI3oinPg6NuMfxeLA_VC2mb9IymElEX37tqcpc9S_ubYVP5EX3_HnskYaIXX6UVw_Z2hhZBitXC34-FMqmVIJuzQsosTKU0LHwCshgZV7LySbPnlDpv2dJdKRYhpZePl0v0qR1JnNX5jTvwVYN5vI4bASk-aAFA4lMk4QJM4qt8XwZbKJeM4LKOpTQuh7ZyfPP_ydz9rjmJBDJQAut5D62vGA9GM4IK2s6E8NfTaQaybP2rjoHwqBSS4TxJ5TuHqLawBd3CVosajpww23E0UrQYcNtwOulYA3d5hBXm9oPi4RNJMY2AqUGUfYsPT4bTmKZPTce7uK55mxoPp1onaxYg7FlkKo1tx9uhtV-aOQAjLHduVtfEinwREumRCgYiFzbt-s_siKiTjx3fYMeg-JrgAZls2IQ8emYcr7AOdmPQbPttptFIHkQfHglkXHObfbo8jyP4ZFaVo9WKAZkCACthad4L3P51tJNH2D_haLNud7Js2XWW7MrptkTn1_kMP9polOCk1pQsvaCH85MnsNPrEHF3KZhUC9wJk-3kPoJ8YOhDisda1fz_zvyi_nO8Z5UJF8-sA0NtjBse5IQckQqdra1gvH1Z68dA4YkO0t89fsCRFz5a8AmcikCx8GU8=w1605-h903-no?authuser=0" width=800 height= 450>

Anunciato, 2017
---
## 3 a 4 perfilhos
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/3a4perfilhos.png?raw=true" width=800 height= 500>
Grigolli, 2019.
---
## 8 perfilhos
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/8perfilhos.png?raw=true" width=800 height= 500>
Grigolli, 2019.
---
class: inverse, middle

# Estratégias para reduzir a dependência dos herbicidas

---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/cobertura2.png?raw=true" width=800 height= 550>
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/cobertura.png?raw=true" width=500 height= 550>

Rizzardi e Silva, 2014.
---
<div align="center">
<img src="https://github.com/vitoranunciato/weedresistBR/blob/main/docs/resistenceofweeds_files/figure-html/selection_of_weeds/rotacao.png?raw=true" width=800 height= 550>

Davis et al, 2012.
---
class: inverse, middle

# Muito obrigado!!

---
class: inverse, middle

# Referências
---
Heap, I.  [The International Herbicide-Resistant Weed Database](www.weedscience.org).  Online.  Wednesday, October 14, 2020.

Alcántara-de la Cruz, Ricardo, Guilherme Moraes de Oliveira, and Leonardo Bianco de Carvalho. ["Herbicide Resistance in Brazil: Status, Impacts, and Future Challenges."](https://www.intechopen.com/online-first/herbicide-resistance-in-brazil-status-impacts-and-future-challenges) Herbicides-Current Research and Case Studies in Use. IntechOpen, 2020.

DE CARVALHO, Leonardo Bianco et al. [Pool of resistance mechanisms to glyphosate in Digitaria insularis.](https://pubs.acs.org/doi/abs/10.1021/jf204089d) Journal of agricultural and food chemistry, v. 60, n. 2, p. 615-622, 2012.

Feng, Paul CC, et al. ["Investigations into glyphosate-resistant horseweed (Conyza canadensis): retention, uptake, translocation, and metabolism."](https://bioone.org/journals/weed-science/volume-52/issue-4/WS-03-137R/Investigations-into-glyphosate-resistant-horseweed-Conyza-canadensis--retention-uptake/10.1614/WS-03-137R.full) Weed Science 52.4 (2004): 498-505.

Yuan, Joshua S., Patrick J. Tranel, and C. Neal Stewart Jr. ["Non-target-site herbicide resistance: a family business."](https://www.sciencedirect.com/science/article/pii/S1360138506003098) Trends in plant science 12.1 (2007): 6-13.

d'Avignon, D. André, and Xia Ge. ["In vivo NMR investigations of glyphosate influences on plant metabolism."](https://www.sciencedirect.com/science/article/pii/S1090780718300910) Journal of Magnetic Resonance 292 (2018): 59-72.

GE, Xia et al. [Vacuolar glyphosate-sequestration correlates with glyphosate resistance in ryegrass (Lolium spp.) from Australia, South America, and Europe: a 31P NMR investigation.](https://pubs.acs.org/doi/abs/10.1021/jf203472s?casa_token=j-v2MPQQlS8AAAAA:HOtW59U6HXhvWLzbF2waQeNvv9AbWBOwjZhzouyAABsXWUEQhWRcLwU6bQPuk85MD_0RW2ExOoWJ_3yzSQ)Journal of agricultural and food chemistry, v. 60, n. 5, p. 1243-1250, 2012.

---

GAINES, Todd A. et al. [Gene amplification confers glyphosate resistance in Amaranthus palmeri.](https://www.pnas.org/content/107/3/1029) Proceedings of the National Academy of Sciences, v. 107, n. 3, p. 1029-1034, 2010.

Yu, Qin, et al. ["Evolution of a double amino acid substitution in the 5-enolpyruvylshikimate-3-phosphate synthase in Eleusine indica conferring high-level glyphosate resistance."](http://www.plantphysiol.org/content/167/4/1440#def-4) Plant physiology 167.4 (2015): 1440-1447.

BLAINSKI, E.; CONSTANTIN, J.; OLIVEIRA JR, R.S.; BIFFE, D.F.; RAIMONDI, M.A.; BUCKER, E.G.; GHENO, E. [Eficácia de alternativas herbicidas para o controle de buva (Conyza bonariensis).](http://omnipax.com.br/livros/2013/BFRM/bfrm-livro.pdf) In: Resumos do 5º Congresso Brasileiro de Soja. Goiânia, GO: Funep, p.54, 2009.

Davis, Adam S., et al. ["Increasing cropping system diversity balances productivity, profitability and environmental health."](https://journals.plos.org/plosone/article?id=10.1371/journal.pone.0047149) PloS one 7.10 (2012): e47149.
